如何用XCode编译WebDriverAgent.xcodeproj

对于下载到WebDriverAgent的源码中的WebDriverAgent.xcodeproj,第一次编译最好去用XCode编译。

因为往往涉及到配置Team自动签名等事宜。

下面就来介绍,如何用XCode去配置和编译WebDriverAgent.xcodeproj

双击WebDriverAgent.xcodeproj

WebDriverAgent_xcodeproj_file

会自动用XCode打开:

XCode_opened_webdriveragent

点击左上角的项目,进入项目属性,点击TARGETS中的WebDriverAgentRunner,切换到Signing & Capabilities

project_targets_signing_capabilites

默认TeamNone,需要去选择一个自己的苹果账号:

signing_team_select_yours

然后会触发自动修复,显示Waiting to repair

signing_waiting_to_repair

看到没有其他警告或错误,就表示自动创建签名和Profile等工作正常了:

signing_bottom_no_other_err

接着即可去编译了:点击左上角▶️按钮,即可触发编译,显示Building ...

xcode_click_to_building

之后即可正常的Product->Test去测试,启动服务,供后续使用了。

Failed to register bundle identifier

如果Signing & Capablities的自动修复后报错:

Failed to register bundle identifier
The app identifier "com.facebook.WebDriverAgentRunner" cannot be registered to your development team because it is not available. Change your bundle identifier to a unique string to try again.

fail_reg_bundle_id

原因:(很可能是)默认的ID:com.facebook.WebDriverAgentRunner已存在,重复了,导致无法继续。

解决办法:修改为其他(独一无二的)值

操作步骤

WebDriverAgentRunner的属性 -> Build Settings -> Packaging -> Product Bundle Identifier

product_id_com_facebook_webdriveragentrunner

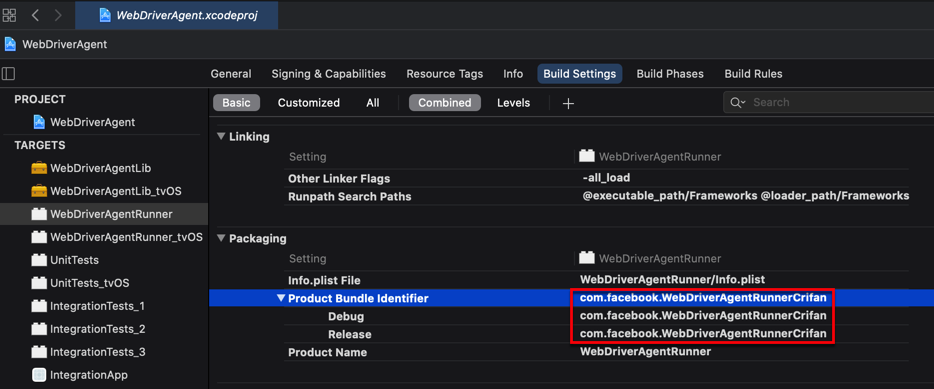

把值从默认的:com.facebook.WebDriverAgentRunner改为别的,确保不重复的值,比如我此处改为:com.facebook.WebDriverAgentRunnerCrifan

product_bundle_id_change_to_yours

别处调用到此处的Product Bundle Identifier

后来注意到一个细节,别处会调用到此处的Product Bundle Identifier中的值

比如:Info->Key->Bundle Identifier: $(PRODUCT_BUNDLE_IDENTIFIER)

info_key_bundle_id

XCode报错:A build only device cannot be used to run this target

现象:编译期间报错

A build only device cannot be used to run this target.
No supported iOS devices are available. Connect a device to run your application or choose a simulated device as the destination.

xcode_cannot_run_target

原因:XCode中没有选择正确的目标设备

解决办法:插入iPhone,且选择对应的iPhone等iOS真机设备。

具体步骤:把此处的iPhone7P插入Mac

mac_connect_iphone7p

然后XCode中选择对应的目标设备,为iPhone7P

xcode_select_target_iphone7p

注:可以借助于idevice_id去列出当前已连接的iOS设备的ID:

 idevice_id -l
3dc13714e21415898e8e2c2863d96990a4d69c97

说明iOS设备的确已连接

XCode报错:Signing for requires a development team. Select a development team in the Signing & Capabilities editor

XCode去编译项目,报错:

Signing for "IntegrationApp" requires a development team. Select a development team in the Signing & Capabilities editor.

Showing All Messages

xcode_signing_requires_team

出错原因:把本身要编译的app搞错了,不是这个IntegrationApp,应该是WebDriverAgentRunner

解决办法:把要编译的app换成WebDriverAgentRunner

具体步骤:

xcode_change_app_webdriveragentrunner

即可。

另外,需要去给WebDriverAgentRunner加上code signing

-》 此处是通过把TeamNone改为自己的值,然后自动修复

xcode_team_to_yours

一般即可修复成功,最终加上code signing。

XCode报错:Failed to register bundle identifier com.facebook.WebDriverAgentRunner

XCode中尝试编译WebDriverAgentRunner,当选择了Team后,自动Singing,结果报错:

Failed to register bundle identifier
The app identifier "com.facebook.WebDriverAgentRunner" cannot be registered to your development team because it is not available. Change your bundle identifier to a unique string to try again.

xcode_failed_register_bundle_identifier

原因:估计是id重复了

解决办法:去更换id

具体步骤:

com.facebook.WebDriverAgentRunner为别的值,比如:com.facebook.WebDriverAgentRunner_Crifan

最终是,对于WebDriverAgentRunnerbundle Identifier值,最后是在:

WebDriverAgentRunner属性-》Build Settings-》Packaging-》Product Bundle Identifier 中去修改的

xcode_pack_product_bundle_id_changed

xcodebuild报错:Signing certificate is invalid

xcodebuild编译报错:

 xcodebuild -project WebDriverAgent.xcodeproj -scheme WebDriverAgentRunner -destination "id=`idevice_id -l | head -n1`" test
Command line invocation:
    /Applications/Xcode.app/Contents/Developer/usr/bin/xcodebuild -project WebDriverAgent.xcodeproj -scheme WebDriverAgentRunner -destination id=3dc13714e21415898e8e2c2863d96990a4d69c97 test

note: Using new build system
note: Building targets in parallel
note: Planning build
note: Constructing build description
error: Signing certificate is invalid. Signing certificate "Apple Development: Mao Li (UBFSP2P5PM)", serial number "<DVTSigningCertificateSerialNumber: 0x7fc4c756db00>", is not valid for code signing. It may have been revoked or expired. (in target 'WebDriverAgentLib' from project 'WebDriverAgent')
error: Signing certificate is invalid. Signing certificate "Apple Development: Mao Li (UBFSP2P5PM)", serial number "<DVTSigningCertificateSerialNumber: 0x7fc4c756db00>", is not valid for code signing. It may have been revoked or expired. (in target 'WebDriverAgentRunner' from project 'WebDriverAgent')

Test session results, code coverage, and logs:
    /Users/crifan/Library/Developer/Xcode/DerivedData/WebDriverAgent-fkggltbnspxitwcqkcogpefhhvai/Logs/Test/Test-WebDriverAgentRunner-2021.04.13_21-02-33-+0800.xcresult

Testing failed:
    Signing certificate is invalid. Signing certificate "Apple Development: Mao Li (UBFSP2P5PM)", serial number "<DVTSigningCertificateSerialNumber: 0x7fc4c756db00>", is not valid for code signing. It may have been revoked or expired.
    Testing cancelled because the build failed.

** TEST FAILED **

xcodebuild_signing_certificate_invalid

原因:自己的Apple苹果(开发者)账号过期了。不可用,没法给代码code sign了。

解决办法:花钱,给苹果开发者账号续费。价格:99美元/年。

XCode报错:The certificate used to sign has either expired or has been revoked

其他类似的问题:

XCode中,报错

Unable to install "WebDriverAgentRunner-Runner"
The certificate used to sign "WebDriverAgentRunner-Runner" has either expired or has been revoked. An updated certificate is required to sign and install the application.

xcode_certificate_expired_revoked

点击Details还可以看到详情:

Details

Unable to install "WebDriverAgentRunner-Runner"
Domain: com.apple.dt.MobileDeviceErrorDomain
Code: -402620392
Recovery Suggestion: The certificate used to sign "WebDriverAgentRunner-Runner" has either expired or has been revoked. An updated certificate is required to sign and install the application.
--
The identity used to sign the executable is no longer valid.
Domain: com.apple.dt.MobileDeviceErrorDomain
Code: -402620392
User Info: {
    DVTRadarComponentKey = 487925;
    MobileDeviceErrorCode = "(0xE8008018)";
    "com.apple.dtdevicekit.stacktrace" = (
     0   DTDeviceKitBase                     0x000000011d4bcc8f DTDKCreateNSErrorFromAMDErrorCode + 220
     1   DTDeviceKitBase                     0x000000011d4fb241 __90-[DTDKMobileDeviceToken installApplicationBundleAtPath:withOptions:andError:withCallback:]_block_invoke + 155
     2   DVTFoundation                       0x0000000101ba464b DVTInvokeWithStrongOwnership + 71
     3   DTDeviceKitBase                     0x000000011d4faf82 -[DTDKMobileDeviceToken installApplicationBundleAtPath:withOptions:andError:withCallback:] + 1440
     4   IDEiOSSupportCore                   0x000000011d36ba10 __118-[DVTiOSDevice(DVTiPhoneApplicationInstallation) processAppInstallSet:appUninstallSet:installOptions:completionBlock:]_block_invoke.292 + 3513
     5   DVTFoundation                       0x0000000101cd317e __DVT_CALLING_CLIENT_BLOCK__ + 7
     6   DVTFoundation                       0x0000000101cd4da0 __DVTDispatchAsync_block_invoke + 1191
     7   libdispatch.dylib                   0x00007fff6db306c4 _dispatch_call_block_and_release + 12
     8   libdispatch.dylib                   0x00007fff6db31658 _dispatch_client_callout + 8
     9   libdispatch.dylib                   0x00007fff6db36c44 _dispatch_lane_serial_drain + 597
     10  libdispatch.dylib                   0x00007fff6db375d6 _dispatch_lane_invoke + 363
     11  libdispatch.dylib                   0x00007fff6db40c09 _dispatch_workloop_worker_thread + 596
     12  libsystem_pthread.dylib             0x00007fff6dd8ba3d _pthread_wqthread + 290
     13  libsystem_pthread.dylib             0x00007fff6dd8ab77 start_wqthread + 15
);
}
--

System Information

macOS Version 10.15.7 (Build 19H2)
Xcode 12.4 (17801) (Build 12D4e)
Timestamp: 2021-04-13T21:17:10+08:00

xcode_unable_install_details

原因:苹果开发者账号过期了,没续费。导致证书不可用。

解决办法:同上,续费即可。

xcodebuild报错:xcode-select error tool xcodebuild requires Xcode

如果运行xcodebuld报错:

xcode-select: error: tool 'xcodebuild' requires Xcode, but active developer directory '/Library/Developer/CommandLineTools' is a command line tools instance
  • 原因:没有安装XCode 或 虽然已安装XCode,但是没启用XCode的命令行
  • 解决办法:去安装并开启XCode的命令行
  • 步骤
    • 文字
      • Xcode->设置->Locations->Command Line Tools,默认是,下拉选择Xcode 11.3.1(11C504)
    • 截图
      • xcode_locations_command_line_tools

安装后,即可查看版本信息:

~  xcodebuild -version
Xcode 11.3.1
Build version 11C504

xcodebuild报错:xcodebuild error missing value for key

如果没有iOS设备(如iPhone)插入到Mac中,则运行:

xcodebuild -project WebDriverAgent.xcodeproj -scheme WebDriverAgentRunner -destination "id=`idevice_id -l | head -n1`" test

会报错:

 ~/dev/xxx/crawler/appAutoCrawler/AppCrawler/iOSAutomation/refer/WebDriverAgent   master ●  xcodebuild -project WebDriverAgent.xcodeproj -scheme WebDriverAgentRunner -destination "id=`idevice_id -l | head -n1`" test
xcodebuild: error: missing value for key 'id' of option 'Destination'
