frida-trace

hook指定的多个二进制库文件

想要去用frida-trace追踪的iOS的ObjC的库=Framework=二进制:

  • AppleAccount
  • AppleAccountUI
  • Accounts
  • AccountsDaemon
  • AuthKitUI
  • AuthKit
  • UserManagement

最后是用:

  • 去include 多个 module
    frida-trace -U -F com.apple.Preferences -I "AppleAccount*" -I "UserManagement" -I "Accounts*" -I "AuthKit*"


可以运行,但是结果:

  • 只找到少数几个函数,不是我们要的
    • -》这么多库,一共才有107个函数
    • -》其中AppleAccount只有7个函数,其中就有上面的_AALogSystem仅仅是日志的函数,而不是我们要的:很多其他账号登录相关的函数
    • -》正常情况下,应该会有非常多的函数才对

注:

也可以换另外写法:

frida-trace -U -F com.apple.Preferences -i "AppleAccount\!" -i "AppleAccountUI\!"  -i "Accounts\!" -i "AccountsDaemon\!" -i "AuthKit\!" -i "AuthKitUI\!" -i "UserManagement\!"

不过结果都一样:hook的函数都很少,不是我们想要的。

输出日志到文件中

  • 解决办法:加上-o参数,去指定输出log到文件
    • 命令
      frida-trace -U -F com.apple.Preferences -o traceAccount.log -m "*[AA* *]" -m "*[AK* *]" -m "*[AS* *]" -m "*[NSXPC* *]" -M "-[ASDBundle copyWithZone:]" -M "-[ASDInstallationEvent copyWithZone:]" -M "-[NSXPCEncoder _encodeArrayOfObjects:forKey:]" -M "-[NSXPCEncoder _encodeUnkeyedObject:]" -M "-[NSXPCEncoder _replaceObject:]" -M "-[NSXPCEncoder _checkObject:]" -M "-[NSXPCEncoder _encodeObject:]" -M "-[NSXPCConnection replacementObjectForEncoder:object:]"

    • 缺点

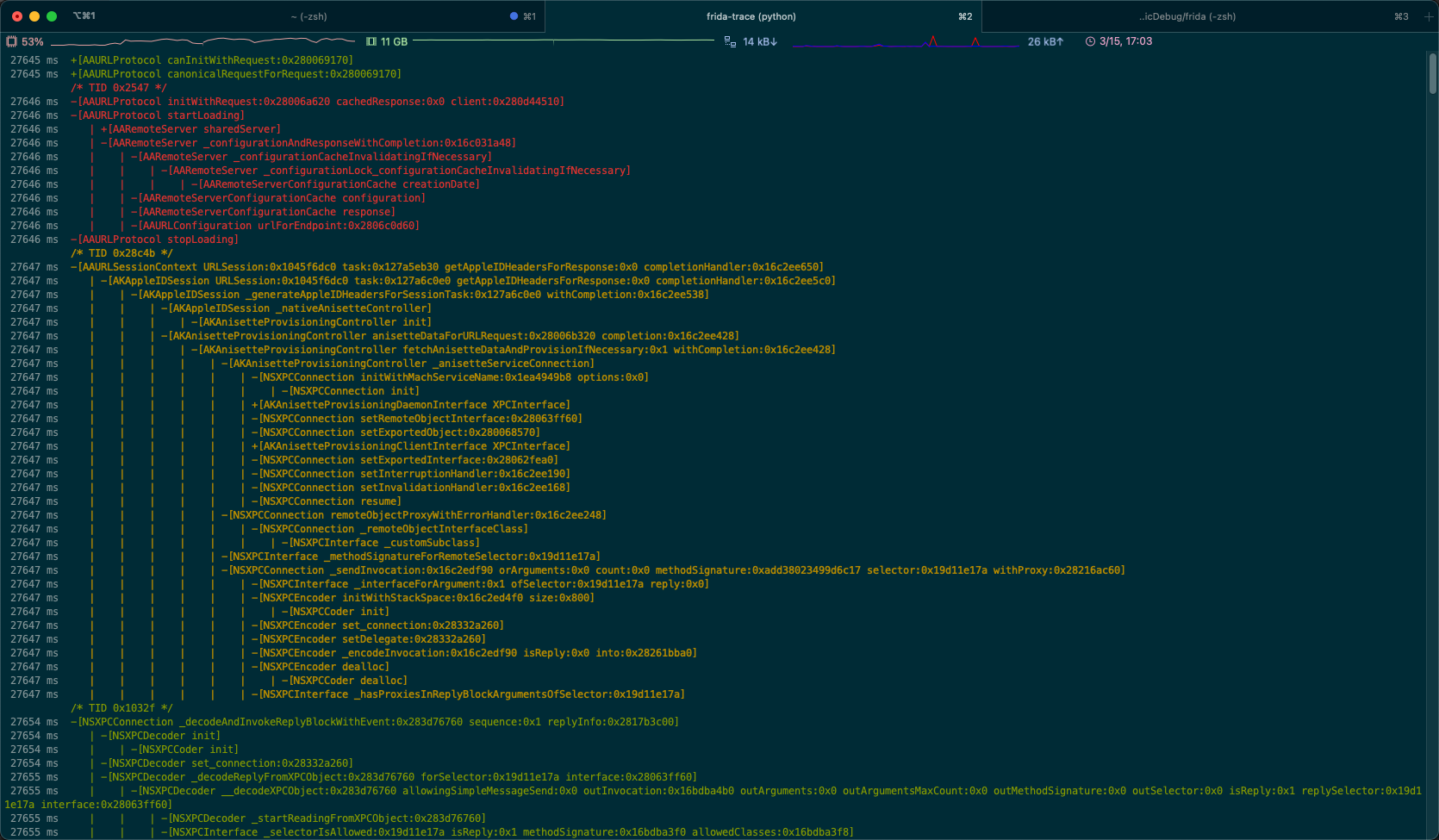

      • 之前=输出日志到终端:带颜色和缩进 -> 利于查看函数调用关系
        • frida_trace_indent_color

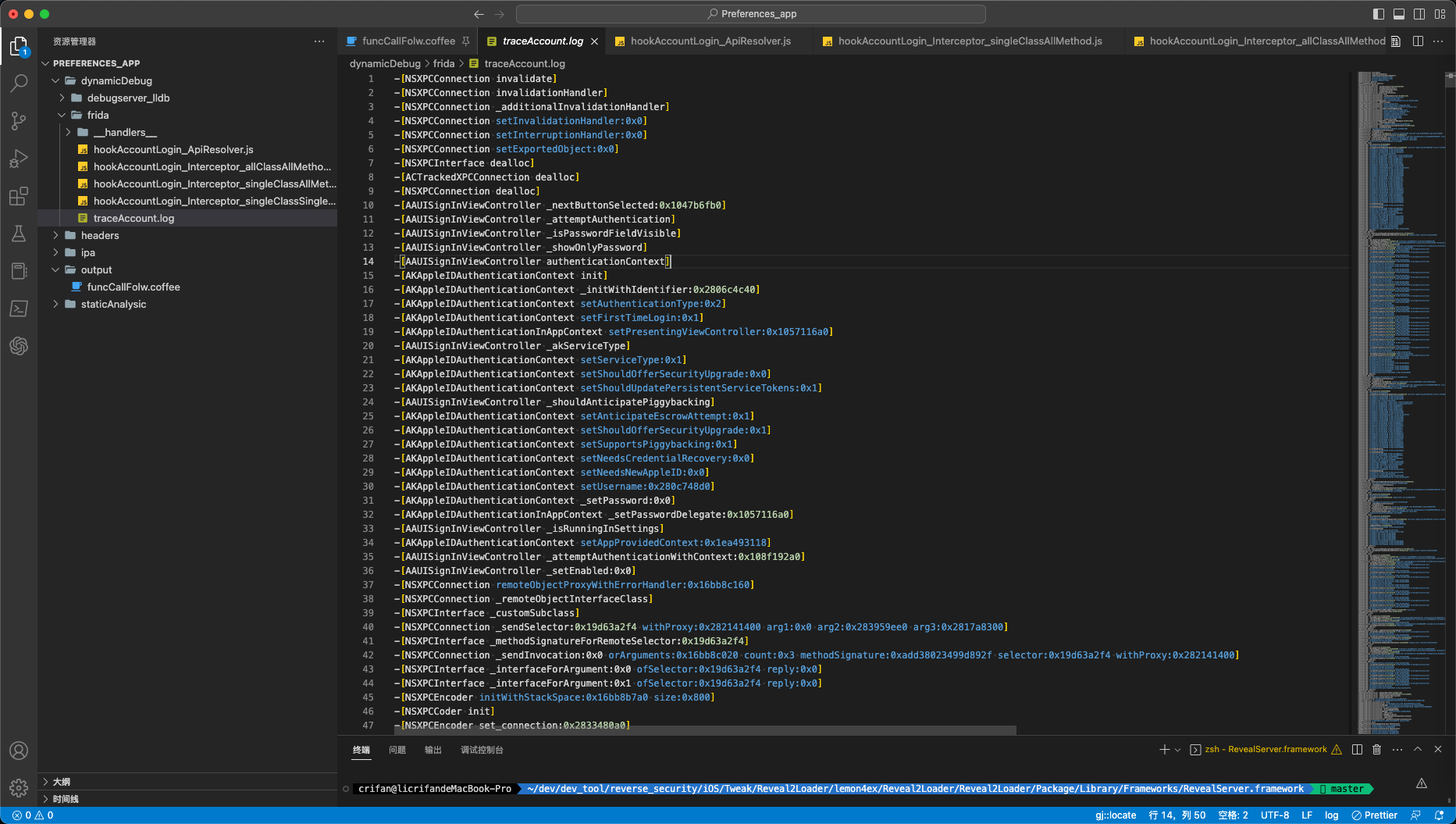

      • 现在=输出日志到文件:丢失了颜色,更主要是缩进也丢失了 -> 非常不利于查看函数调用关系
        • frida_trace_no_indent_color

想要保留所有的frida-trace的带缩进的日志

如上所述,想要:保留所有的frida-trace的日志,但如果用输出到日志文件,却又丢失缩进(和颜色)

另外有个规避办法:

修改当前终端的最大显示行数 -> 就可以避免输出日志行数太多,之前内容被冲掉,看不到的问题了

比如:

  • MaciTerm2中,右键当前tab页顶部-》右键-》Edit Session->Terminal->Scrollback Buffer->Scrollback line:改为足够大的数值,比如5000
    • iterm2_scrollback_line_large

甚至如果log日志特别长,那么可以考虑:设置为无限行数都保留 == Unlimited scrollback

iterm2_unlimited_scrollback

这样就完全不用担心日志行数太多,前面的日志被冲掉,看不到的问题了。

通过修改特定函数的hook的js去打印参数值

对于之前的需求:frida-trace时,打印其中特定的某个ObjC函数的参数

之前不知道如何解决,后来参考这里,突然想到:

倒是可以借助其所说的,对于frida-trace自动为每个类的函数,所生成的js文件:

  • 位置:__handlers__/{ClassName}/{FunctionName}.js

去修改js代码,加上打印对应的args的代码,即可打印对应参数值了。

举例

-[AAAccountManager addAccount:]

frida-trace为函数-[AAAccountManager addAccount:]自动生成的:

  • js文件
    • /Users/crifan/dev/dev_root/iosReverse/AppleStore/AuthKit_akd/dynamicDebug/frida/scripts/__handlers__/AAAccountManager/addAccount_.js
      • frida_trace_gen_js
  • 完整js代码

    /*
    * Auto-generated by Frida. Please modify to match the signature of -[AAAccountManager addAccount:].
    * This stub is currently auto-generated from manpages when available.
    *
    * For full API reference, see: https://frida.re/docs/javascript-api/
    */

    {
      /**
        * Called synchronously when about to call -[AAAccountManager addAccount:].
      *
      * @this {object} - Object allowing you to store state for use in onLeave.
      * @param {function} log - Call this function with a string to be presented to the user.
      * @param {array} args - Function arguments represented as an array of NativePointer objects.
      * For example use args[0].readUtf8String() if the first argument is a pointer to a C string encoded as UTF-8.
      * It is also possible to modify arguments by assigning a NativePointer object to an element of this array.
      * @param {object} state - Object allowing you to keep state across function calls.
      * Only one JavaScript function will execute at a time, so do not worry about race-conditions.
      * However, do not use this to store function arguments across onEnter/onLeave, but instead
      * use "this" which is an object for keeping state local to an invocation.
      */
      onEnter(log, args, state) {
        log(`-[AAAccountManager addAccount:${args[2]}]`);
      },

      /**
        * Called synchronously when about to return from -[AAAccountManager addAccount:].
      *
      * See onEnter for details.
      *
      * @this {object} - Object allowing you to access state stored in onEnter.
      * @param {function} log - Call this function with a string to be presented to the user.
      * @param {NativePointer} retval - Return value represented as a NativePointer object.
      * @param {object} state - Object allowing you to keep state across function calls.
      */
      onLeave(log, retval, state) {
      }
    }


可以拷贝把其中的:

log(`-[AAAccountManager addAccount:${args[2]}]`);

改为:

log(`-[AAAccountManager addAccount:${new ObjC.Object(args[2])}]`);

应该就可以:打印出ObjC对象的信息了,而不仅仅是:ptr=NativePointer指针的字符串而已。
